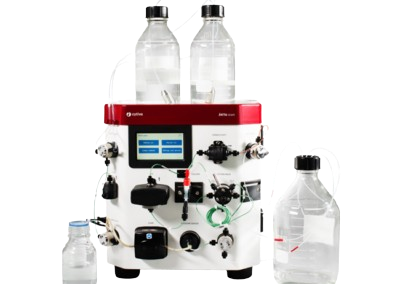

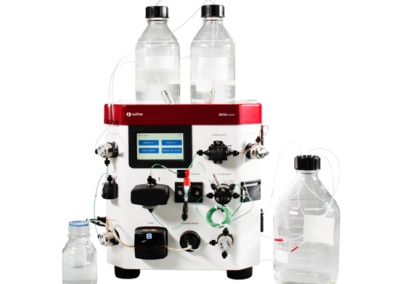

소량 단백질 정제에 최적화된 자동화 액체 크로마토그래피 시스템
ÄKTA start™는 실험실 또는 연구실에서 간편하게 사용할 수 있도록 컴팩트한 장비 크기로 설계되었습니다. 실험실에서 수행하던 매뉴얼 단백질 정제 연구를 자동화된 시스템으로 전환하고자 한다면, 자동화 크로마토그래피 시스템인 싸이티바(Cytiva)의 ÄKTA start™를 제안합니다.
ÄKTA Start™는 소량 단백질 정제를 위한 크로마토그래피 시스템으로, 전면에 추가 작동 소프트웨어 없이 조작할 수 있는 터치 스크린이 있어 실시간 실험을 모니터링할 수 있습니다.
- 최대 5ml/min의 유속, 최대 0.5MPa의 압력
- 터치 스크린을 이용한 편리한 구동
- 실시간 실험 모니터링
- 컴팩트한 사이즈로 실험실 공간 활용
- 내장되어 있는 Prepacked 컬럼 리스트를 활용하여 간단한 실험 수행
제품코드 | 제품명 | Pack Size | |
---|---|---|---|
29022094 | ÄKTA start™ | 1 | 견적문의 |
Parameter | ÄKTA start™ |
---|---|
Application | Entry level chromatography solution for the preparative purification of proteins in lab scale. |
Buffer selection | 2 buffer inlets |
Compliance | The product fulfills valid directives and standards when used within the conditions specified in the user manual. The product must also be used in the same state as it was delivered from Cytiva™ and connected only to other CE labeled Cytiva™ modules or other products as recommended. For regulatory details please see declaration of conformity. |
Depth | 280 mm |
Flow cell path length | 2 mm (Optical path length, 2 μl cell volume (default)) |
Flow rate | 0.5 - 5 ml/min |
Height | 360 mm |
Multiple wavelength detection | Single Wave length |
Operating pressure max. | 0.5 Mpa |
Order Information | Includes standalone system with accessory box and user documentation. Fraction collector and UNICORN™ start software are optional modules. For ordering information, please visit our website and or contact your local Cytiva™ representative. |
Power consumption | 95 VA |
Protection class | IP21 |
Pump type | Peristaltic Pump; Single channel, four roller pump head with low pulsation |
Relative humidity | <20 to 80%, non-condensing |
UV wavelength | 280 nm |
Viscosity | 0.6-5 cP |
Voltage | 100-120/220-240 VAC |
Weight | 9 kg |
Width | 340 mm |
